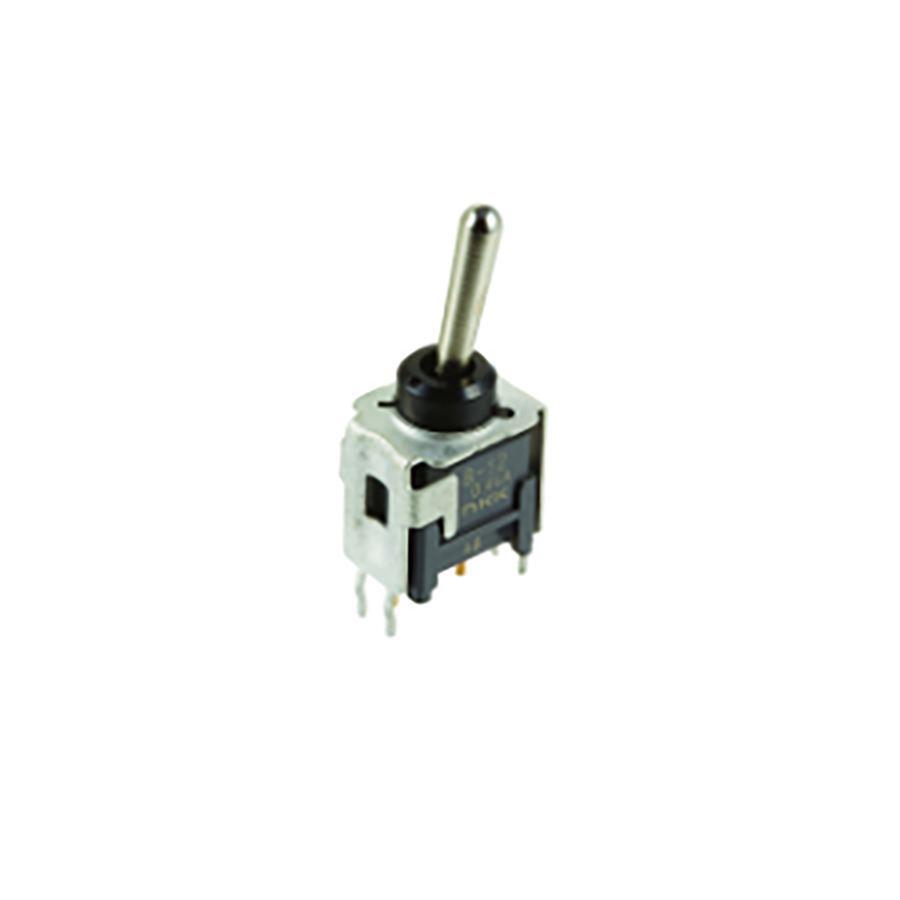

B12AB
Manufacturer:
NKK Switches
Mfr.Part #:
B12AB
Datasheet:
Description:
Toggle Switches Through Hole Current Rating:400 mA SPDT ON - ON Standard Round
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Length | 10.56 mm |
| Width | 10.16 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 28 V |
| Number of Pins | 1 |
| Power Rating | 400 mW |
| Height | 13.1 mm |
| Circuit Type | SPDT |
| Packaging | Tray |
| Depth | 8 mm |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold |
| Current Rating | 400 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 28 V |
| Orientation | Straight |
| Actuator Length | 10 mm |
| Throw Configuration | SPDT |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 28 V |
| Switch Function | ON - ON |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 50 kcycles |
| Actuator Material | Brass |
| Contact Current Rating | 100 mA |
| Actuator Type | Standard Round |
| Termination Style | Pin |
| Switching Capacity | 400 mW |
| IP Rating(Ingress Protection) | IP67 |
Stock: 395
Distributors
pcbx
pcbxUnit Price$3.42314
Ext.Price$3.42314
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.42314 | $3.42314 |
| 10 | $3.17948 | $31.79480 |
| 25 | $3.02303 | $75.57575 |
| 50 | $2.95977 | $147.98850 |
| 100 | $2.89137 | $289.13700 |
| 300 | $2.74355 | $823.06500 |
| 500 | $2.60326 | $1301.63000 |
| 1000 | $2.49041 | $2490.41000 |
